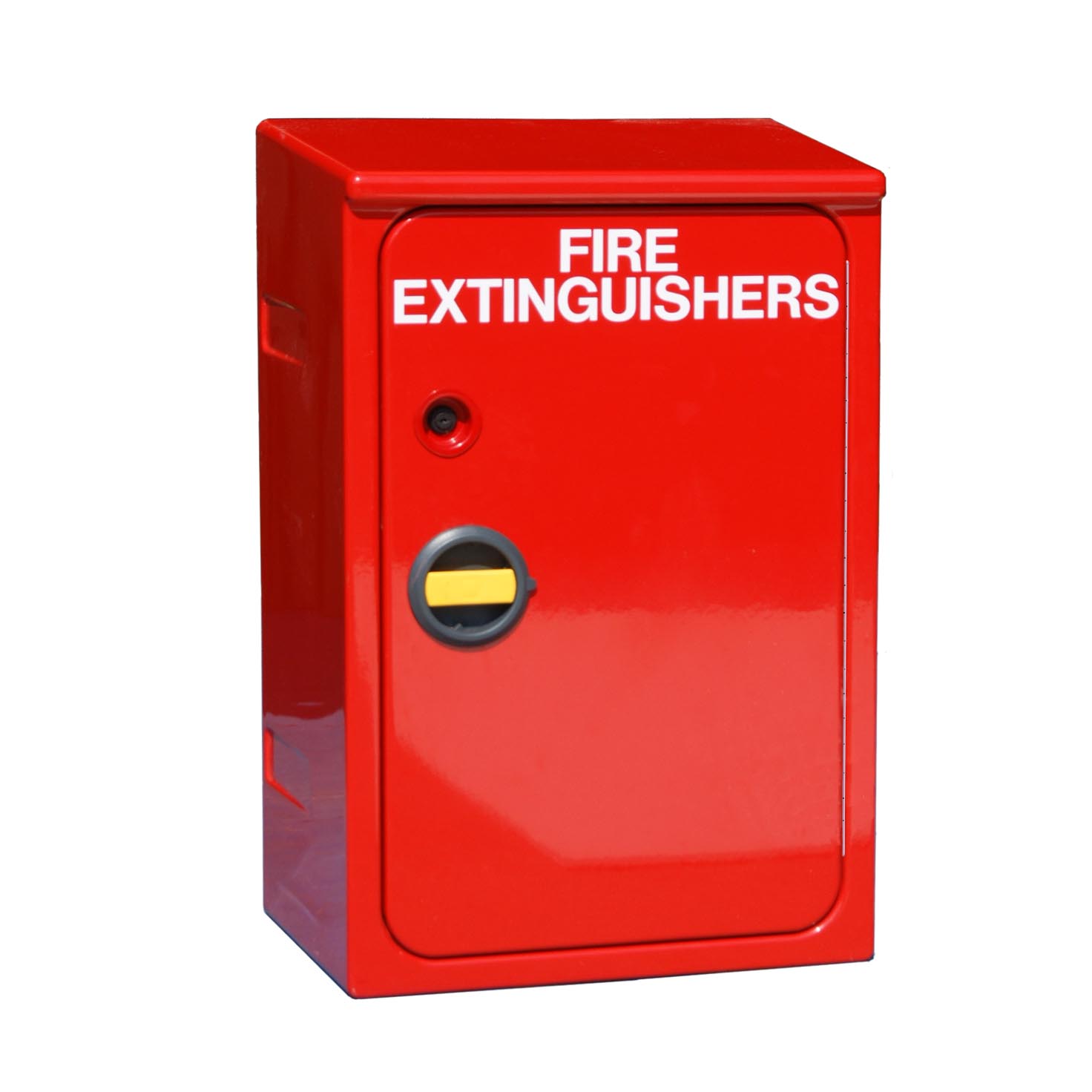

JB83NHS 2 x 6-12 Kg Fire extinguisher Cabinet

Dimensions (mm): Height x width x depth: 816 x 548 x 344

Aperture: 662H x 395W

Internal depth: 275

Weight Kg: 11.5 Kg

The JB83NHS can store 2 x 6-12Kg portable fire extinguishers (excluding most 5Kg CO2 models).It is a very robust design with a built in lock so only staff can open it. The hinges are fitted with anti-tamper bolts so patients will not be able to gain access. The smooth surface also makes it very easy to clean.
These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door aperture. The 316 hinges are secured with 316 stainless steel nuts, bolts and washers.

The door can be specified with left or right hinging and features a Rotary Graphite nylon/stainless steel handle to guarantee fast access in an emergency.This can also be fitted with an anti-tamper seal.

Typical uses, for the storage of 2 x 6-12kg Portable fire extinguisher (excluding 5Kg CO2)
It is widely used in NHS secure units
due to it's durability and unique features
Material specification
Colour: Red RAL3000
Material Lloyds approved composites with UV
Stabilised gelcoat
Hinges: 316 Stainless steel
Lock and bezel: steel
Handle: Nylon/316 Stainless steel
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites

JB83NHS Fire Extinguisher Datasheet 2020

Typical uses, for the storage of 2 x 6-12kg Portable fire extinguisher (excluding 5Kg CO2)
It is widely used in NHS secure units
due to it's durability and unique features
Material specification
Colour: Red RAL3000
Material Lloyds approved composites with UV
Stabilised gelcoat
Hinges: 316 Stainless steel
Lock and bezel: steel
Handle: Nylon/316 Stainless steel
Seal: EPDM
Optional extras
Other RAL Colours
Class 1 Fire retardant composites

JB83NHS Fire Extinguisher Datasheet 2020
