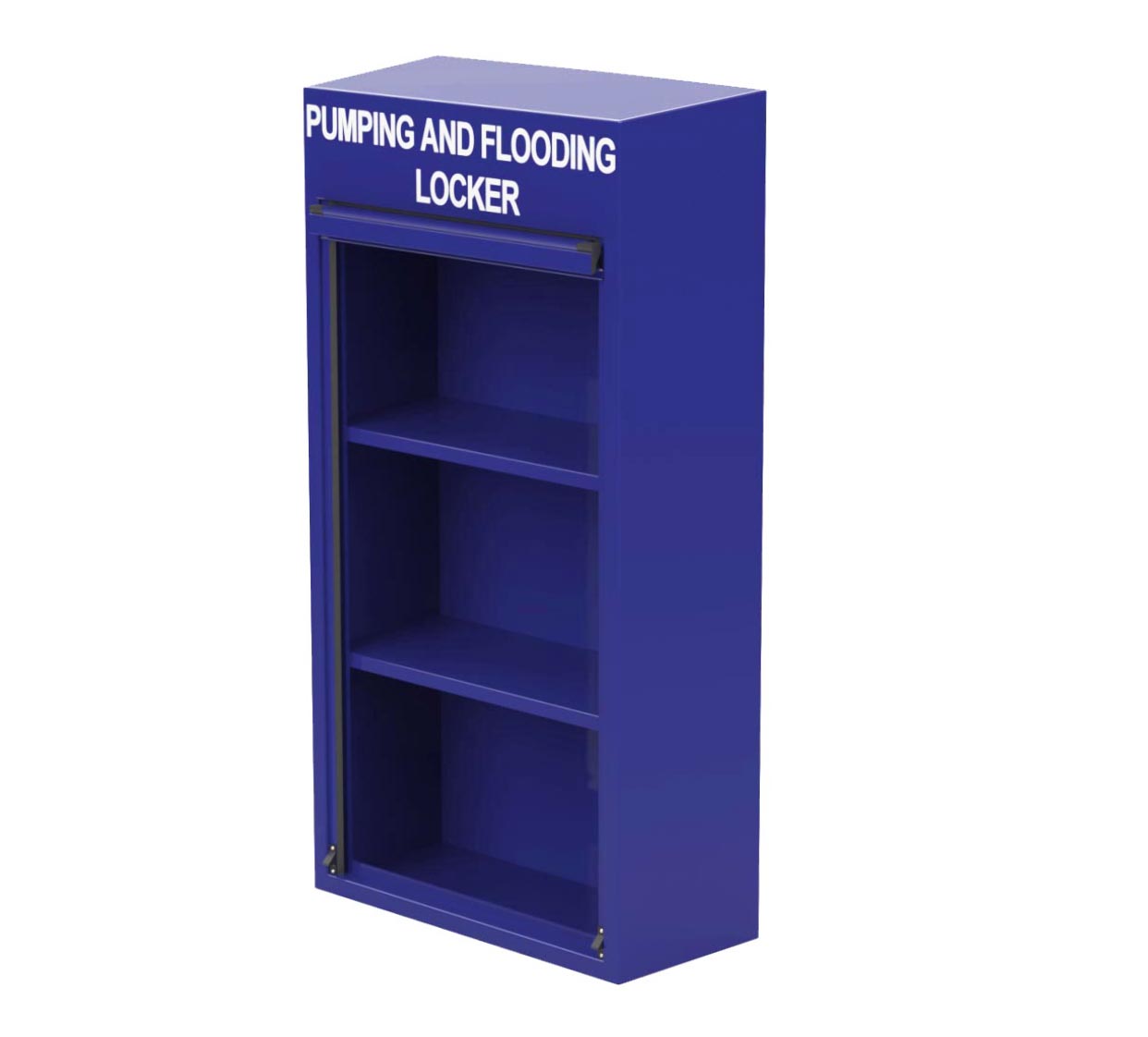

Pumping and Flooding Locker (RS450PF)

Dimensions (mm): Height x width x depth: 2000 x 1090 x 450

Aperture: 1530H x 902W

Weight Kg: 71g

The RS450PF is designed to store damage and flooding control equipment on Naval vessels and has the NATO part number 2090-99-176-8388. It features two shelves to form three compartments for orderly storage.
It is fitted with a superb AS roller shutter door making access to the contents possible where there would not be room to open a conventional door so ideal for tight spaces. The design ensures a high level of rigidity for the relatively low weight with a very effective EPDM seal around the door apertures. These cabinets are manufactured using Lloyds approved composites including UV resistant gelcoats to provide long lasting protection in even the harshest environments. These are manufactured in flame retardant materials. This is backed up with an excellent IP rating of 56. It has both Lloyds and ABS approvals.

Typical uses, For the storage of damage control equipment on Naval vessels.
designed to cope with
extreme environments offshore.
Material specification
Colour: Blue RAL 5002
Material Lloyds approved composites with UV
Stabilised gelcoat and class 1 flame retardant resins
RS Roller shutter door:
Aluminium
Seal: EPDM
Optional extras
Other RAL Colours

RS450PF Datasheet

Typical uses, For the storage of damage control equipment on Naval vessels.
designed to cope with
extreme environments offshore.
Material specification
Colour: Blue RAL 5002
Material Lloyds approved composites with UV
Stabilised gelcoat and class 1 flame retardant resins
RS Roller shutter door:
Aluminium
Seal: EPDM
Optional extras
Other RAL Colours

RS450PF Datasheet
